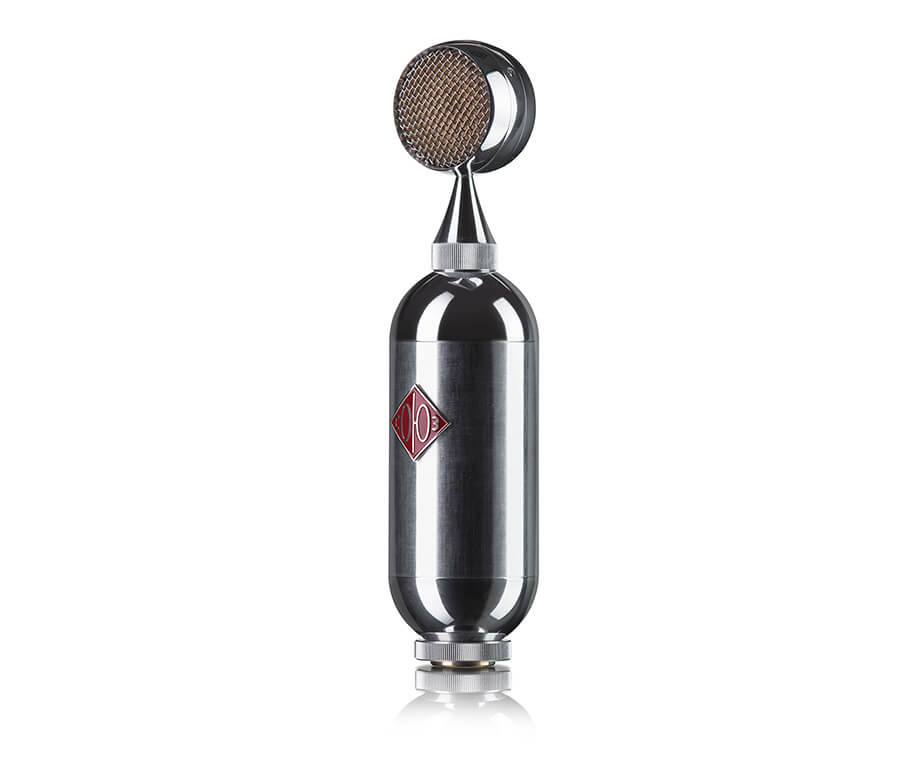

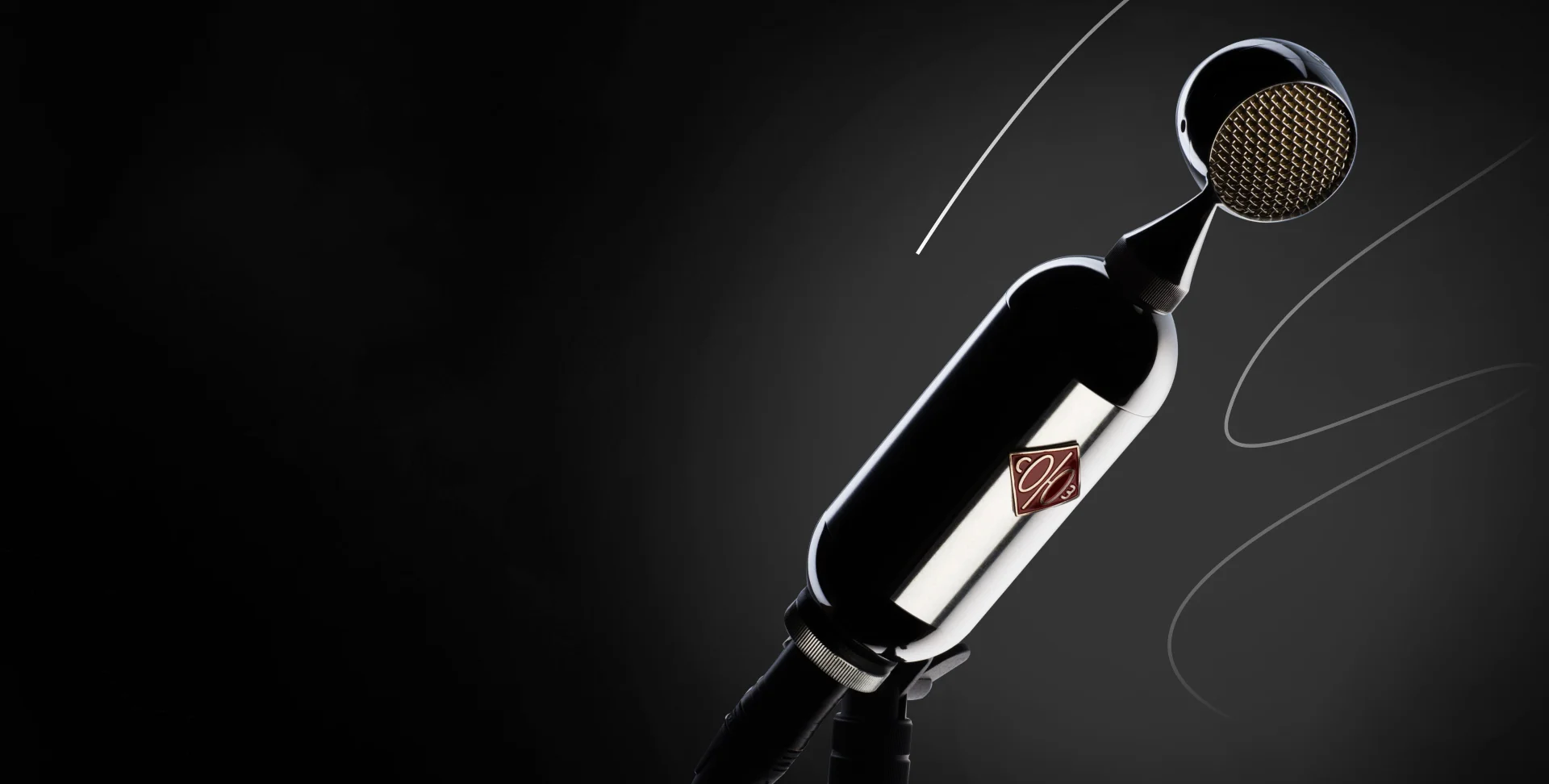

023 Series

Large Diaphragm FET Condenser Microphone

$1399 USD

Find a dealer

Thick low-end, pronounced mid-range, and smooth top-end

Includes 20 dB pad for loud sources

Custom large capsule designed and machined in-house

Proprietary toroidal transformer imparts color and depth

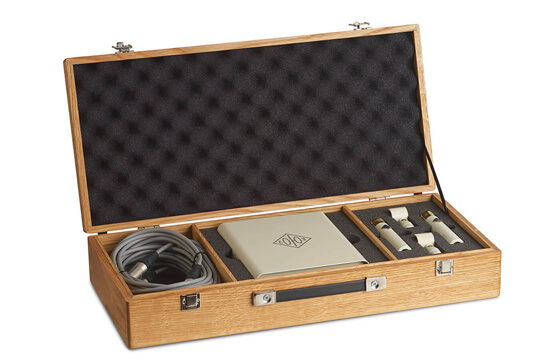

Comes in a hand-crafted Russian hardwood box

100% handmade at the Soyuz Base in Tula, Russia

Color and Clarity

Featuring a distinct blend of color and clarity, the Soyuz 023 condenser is perfect for capturing everything from drums to amplifiers. With its forgiving top-end, smooth midrange, and thick lows, The 023 complements the aggressive tonalities of brighter instruments – and vocals – without sacrificing transients or detail.

Greg Wells

Adele, Ariana Grande, Keith Urban

Wow. Quite blown away by the sound. I compared the 023 and 017 to my holy grail 47 and 251, and they happily live on the same city block, which is a tiny snobby elitist block!!!!

Testimonials

The Workhorse

The 023 is an exceptionally easy microphone to use: it captures a full, balanced sound, regardless of placement and distance. An exceptionally forgiving sonic profile makes it an excellent choice for singers seeking a warm, colorful texture that is, nonetheless, true to the source. On louder and bass-heavy sources like electric guitar amplifiers, kick drums, and bass amplifiers, the 023 delivers a tight, full-bodied punch that captures the low-end extension of instruments with the clarity to cut through a dense mix. In addition, the proprietary Soyuz transformer imparts a thickness and character that enhances and complements sources that generally demand accuracy: cello, upright bass, bass clarinet, trombone and so forth.

Play Video

Hear the 023 on female vocals

Hear the 023

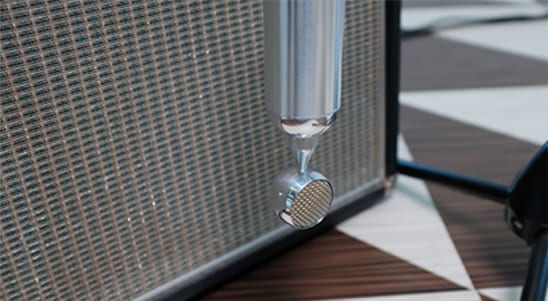

Guitar Amp

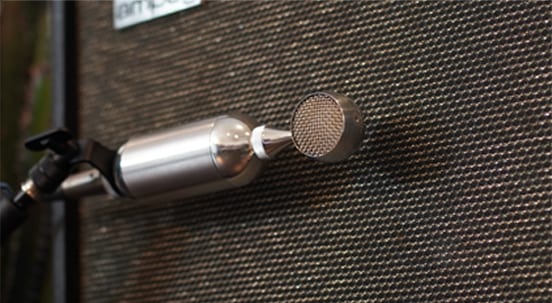

Electric Bass

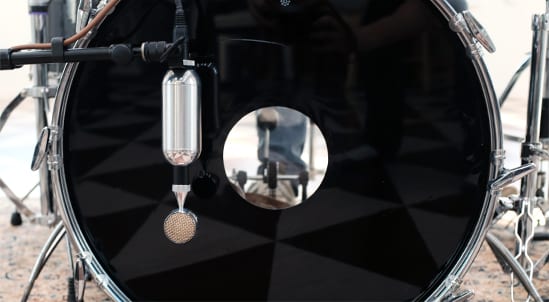

Kick Drum

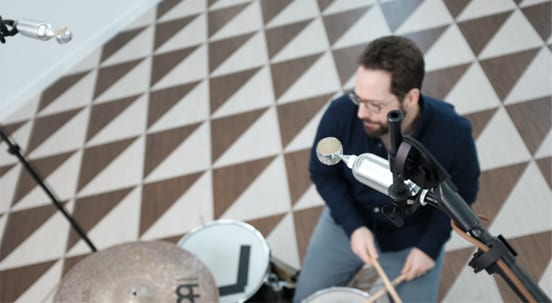

Drum Overheads

Watch more

Try Soyuz In Your Own Studio

Soyuz USA Demo Request

First Name

Last Name

City

State

Phone

What mic are you interested in?

A Heritage of Innovation, a Tradition of Excellence

The engineers at Soyuz have spent decades studying, servicing and building classic microphones; Soyuz’ machinists are the best in the world. This unique pool of knowledge, craft, and skill – combined with the ears of numerous musicians, producers and audio engineers – has culminated in the creation of the 023’s custom S23 capsule. A different design than that of the 017 series, the S23 is Soyuz’ reimagining of Lomo’s Russian version of the CK12 capsule: with its thick low-end, pronounced mid-range, and detailed top-end – one that is forgiving and flatters high-frequency sources rather than exaggerating them – we believe that we have improved upon a classic.

Tour our workshop

Handcrafted

As with all Soyuz microphones, the 023 is completely handmade: bodies and capsules are manually machined and transformers are wound in-house in Tula, Russia. The 023's unique character comes from the triple back plate system which is unlike any other capsule in production.

Specifications

Type:

FET condenser microphone

Capsules:

Two 33mm membranes (one gold sputtered)

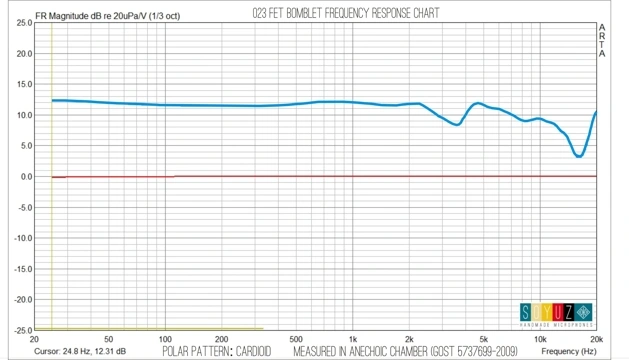

Frequency Range:

30Hz / 18kHz

Polar Pattern:

Cardioid

Sensitivity:

24.5 mV/Pa

Impedance:

190 Ohms

SPL:

140 dB

Equivalent Noise:

18 dB (a-weighted)

Power:

Phantom 48V

Size:

194mm length x 47mm diameter

Weight:

510g(single microphone)

Extras:

Wooden microphone box, -20 dB pad, mic holder
