013Series
Small Diaphragm Condenser Microphone
FET
(single)
(single)
$699
TUBE
(pair)
(pair)
$2799
Detailed top-end,
warm mids,
balanced low-end
Custom small capsule
designed and
machined in-house
Proprietary toroidal
transformer imparts
color and depth
Includes pad
for loud sources
Comes in a hand-crafted
Russian hardwood box
100% handmade at
the Soyuz Base in Tula, Russia
Rob Schnapf
Producer of Elliot Smith, Kurt Vile
The [013 FET] mics sound great as overheads. Focused and clear. For me, it's a great snapshot of the kit from above. They remind me of 84s but they have bigger shoulders and are a little taller
PRECISION
MEETS
WARMTH
MEETS
WARMTH
The 013 Series combines the best elements of classic SDC designs with a unique character of its own. Both tube and FET versions capture sound with precision while imparting a warm sonic signature. The smooth top end and a midrange accuracy that is musical – never clinical – enable the recording of complex, transient-rich instruments and sounds that span the frequency spectrum and dynamic range in a warm, pleasing way.
FOCUSED
& SMOOTH
The 013 Series combines the best elements of classic SDC designs with a unique character of its own. Both tube and FET versions capture sound with precision while imparting a warm sonic signature. The smooth top end and a midrange accuracy that is musical – never clinical – enable the recording of complex, transient-rich instruments and sounds that span the frequency spectrum and dynamic range in a warm, pleasing way.
TRY SOYUZ
IN YOUR OWN STUDIO
TUBE OR FET
The 013 Series is available in either FET or tube circuit models; both feature identical capsules and form factors. While they also share similar, natural sound profiles, there are subtle differences between them. The 013 FET’s transistor circuit captures transients with a slightly faster response; the 013 TUBE has a smooth top-end perfect for situations in which a touch of coloration is desirable.
013FET
The green badged 013 FET comes in a compact wood carrying case with a pair of 10dB pads and mounting clips making it easy to take on the road for a remote gig or a live show.
013TUBE
The blue badged 013 TUBE comes as a stereo pair in a handcrafted oak suitcase that includes a stereo power supply with built-in 20dB pads, two custom 4-pin cables, and mounting clips.
A HERITAGE OF INNOVATION, A TRADITION OF EXCELLENCE
The engineers at Soyuz have spent decades studying, servicing and building classic microphones; Soyuz’ machinists are the best in the world. This unique pool of knowledge, craft and skill – combined with the ears of numerous musicians, producers and audio engineers – has culminated in the creation of the 013 Series’ custom S13 capsule. The S13, with its detailed top end, warm mid-range, and balanced low-end possesses a remarkable ability to capture source material with an accuracy that is always flattering, never harsh.
Specifications
Type:
Tube condenser microphone
Capsules:
25mm gold sputtered membrane

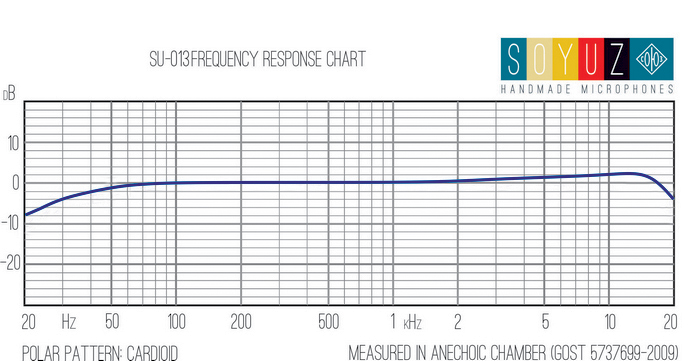

Frequency Range:
20Hz / 20kHz
Polar Pattern:
Cardioid/switchable capsules: hypercardioid, omni
Sensitivity:
25 mV/Pa
Impedance:
180 Ohms
SPL:
140 dB
Equivalent Noise:
22 dB (a-weighted)
Tube Type:
6S6B
Power:
Dedicated power supply unit BP-013
Size:
122mm length x 25mm diameter (24mm capsule head diameter)
Weight:
200g (single microphone)
Extras:
Wooden microphone box, power supply unit with -20db pad, 2x 4 pin cables, 2x clip holders, 2x hypercardioid & 2x omni switchable capsules (depends on the version)
Type:
FET condenser microphone
Capsules:
25mm gold sputtered membrane
Frequency Range:
20Hz / 20kHz
Polar Pattern:
Cardioid/switchable capsules: hypercardioid, omni
Sensitivity:
20 mV/Pa
Impedance:
150 Ohms
SPL:
143 dB
Equivalent Noise:
18 dB (a-weighted)
Power:
48V Phantom Power
Size:
122mm length x 25mm diameter (24mm capsule head diameter)
Weight:
200g (single microphone)
Extras:
Wooden microphone box, -10dB pad, clip holder, switchable hypercardioid and omni capsules (depends on the version)
